उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| material: | material | color: | red color |
|---|---|---|---|
| length: | 30m/roll | type: | V belt |
| surface: | smooth | Application: | Transmission belt |
| हाई लाइट: | पु extruded बेल्ट,pu round belt |
||

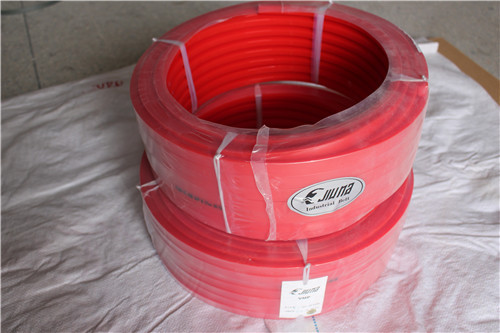

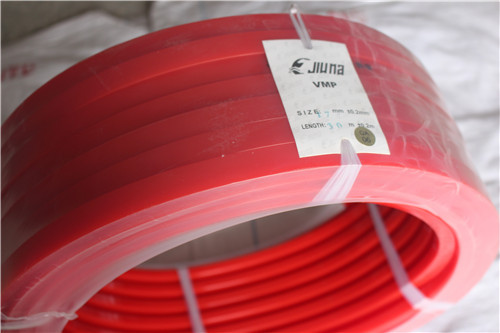

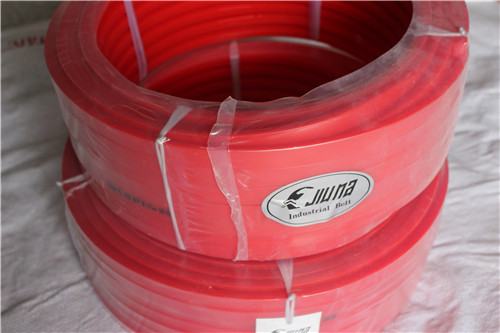

TPU V Belts
Specifications
PU V belt
Details:
(1) Thermoplastic polyurethane material, easy to be melted jointed
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 - 80
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

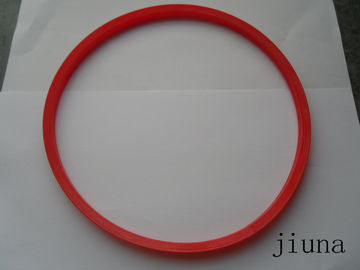

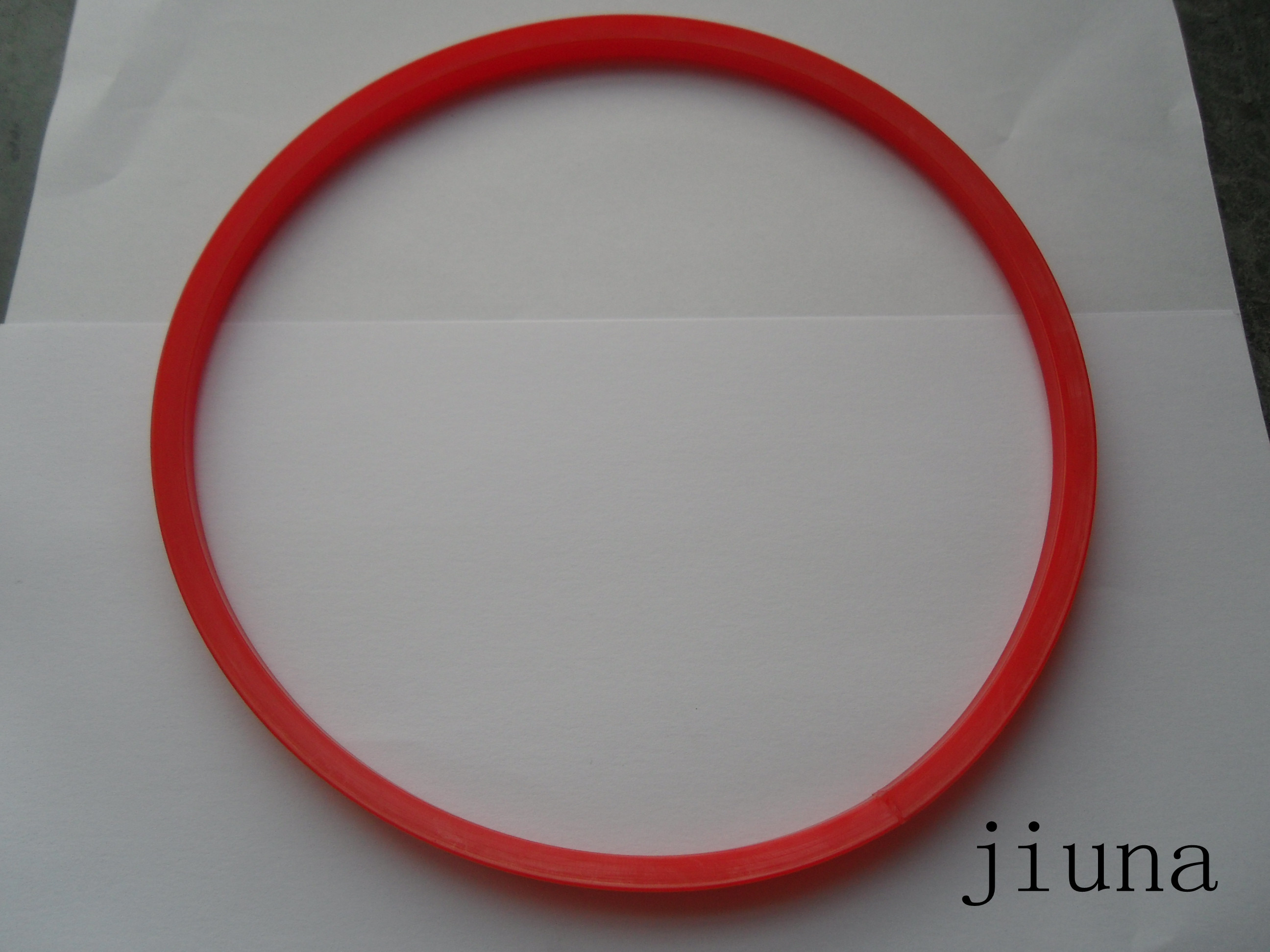

(6) Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
(7) V-belt
Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance
|
Specification |
X(mm) |
H(mm) |
Hardness (Shore A) |
M/rolls |
Reinforced |
|---|---|---|---|---|---|
|
A |
13mm |
8 |
90A |
30 |
· |
|
B |
17mm |
11 |
90A |
30 |
· |
|
C |
22mm |
14 |
90A |
30 |
· |
|
D |
32mm |
19 |
90A |
30 |
· |
|
M |
8mm |
4 |
90A |
50 |
|
|
Z |
10mm |
5 |
90A |
50 |
· |
