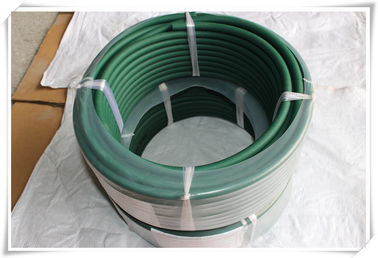

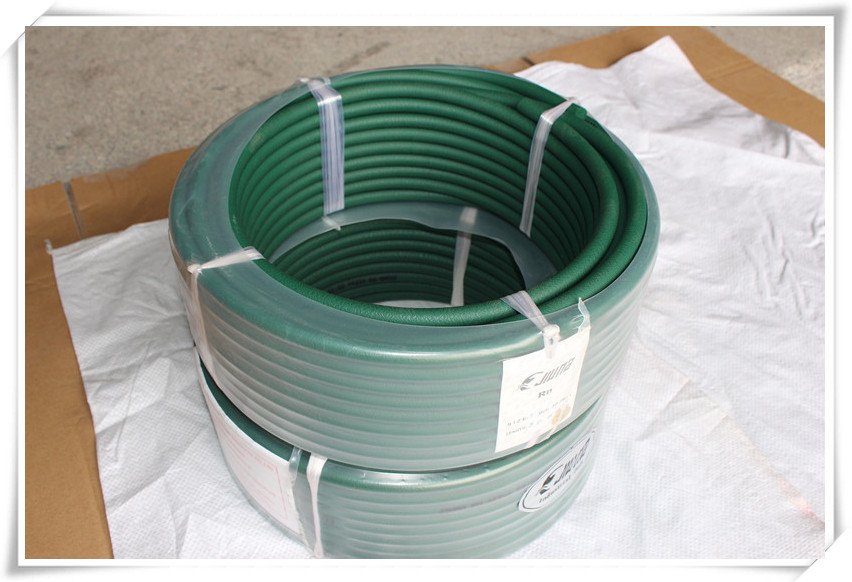

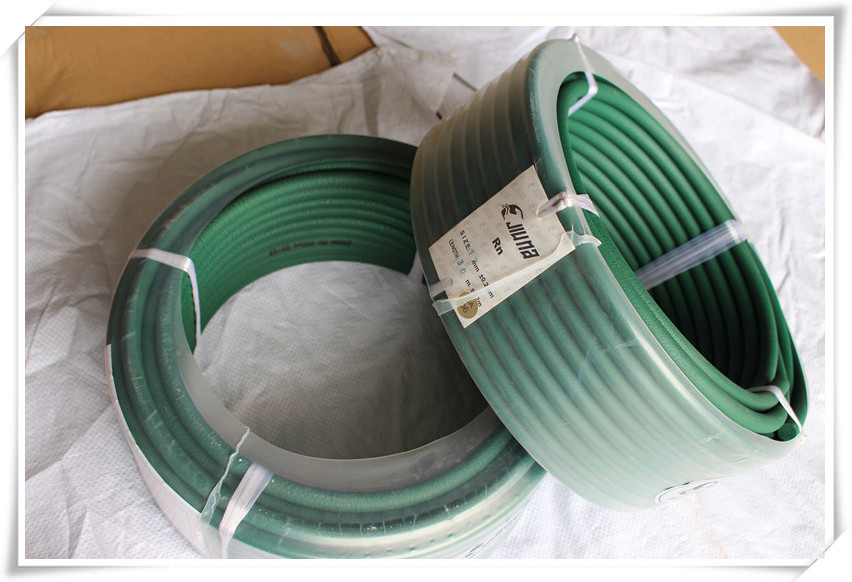

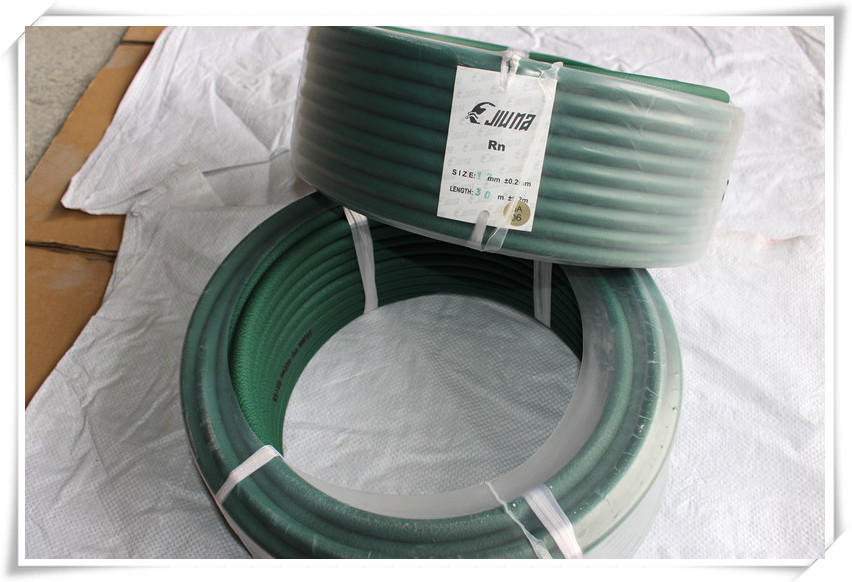

Textile urethane drive belts / urethane round belt transmission line

चीन Wuxi Jiunai Polyurethane Products Co., Ltd प्रमाणपत्र
चीन Wuxi Jiunai Polyurethane Products Co., Ltd प्रमाणपत्र
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

मैं अब ऑनलाइन चैट कर रहा हूँ

Textile urethane drive belts / urethane round belt transmission line

Textile urethane drive belts / urethane round belt transmission line
Textile urethane drive belts / urethane round belt transmission line Textile urethane drive belts / urethane round belt transmission line Textile urethane drive belts / urethane round belt transmission line Textile urethane drive belts / urethane round belt transmission line

बड़ी छवि :  Textile urethane drive belts / urethane round belt transmission line

उत्पाद विवरण:
Place of Origin: china
ब्रांड नाम: jiuna
प्रमाणन: ROHS
Model Number: diameter3-20m
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000,00 as per month
विस्तृत उत्पाद विवरण
color: green hardness: 85A-90A
longth: 400/roll 200m/roll export port: shanghai of china
type: PU rough round belt Lead time: 5days-7days
हाई लाइट:

पु extruded बेल्ट

,

हरे दौर बेल्ट

Textile urethane drive belts / urethane round belt transmission line
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
PU Round belt with reinforcement

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30





Service commitment:
“Quality for keeping going ,Credit to win the world”

Textile urethane drive belts / urethane round belt transmission line 0Textile urethane drive belts / urethane round belt transmission line 1
