85A Hardness Polyurethane Round Belt High Impact Resistance

चीन Wuxi Jiunai Polyurethane Products Co., Ltd प्रमाणपत्र
चीन Wuxi Jiunai Polyurethane Products Co., Ltd प्रमाणपत्र
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

मैं अब ऑनलाइन चैट कर रहा हूँ

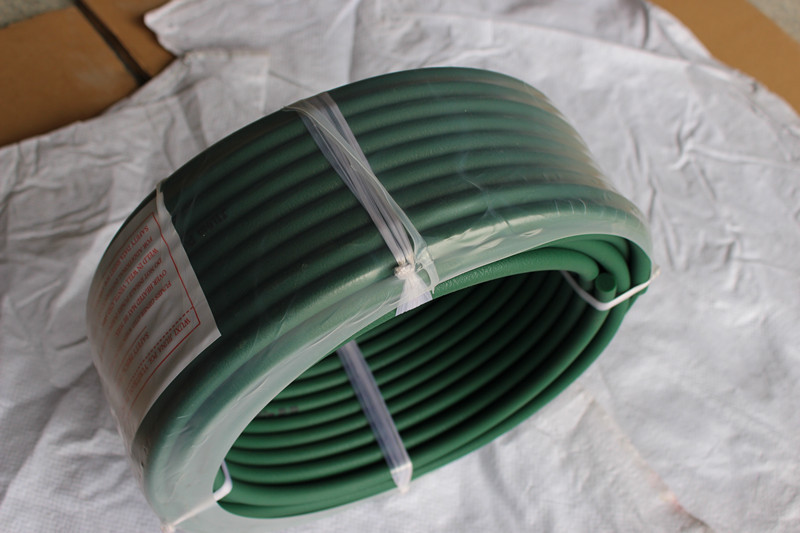

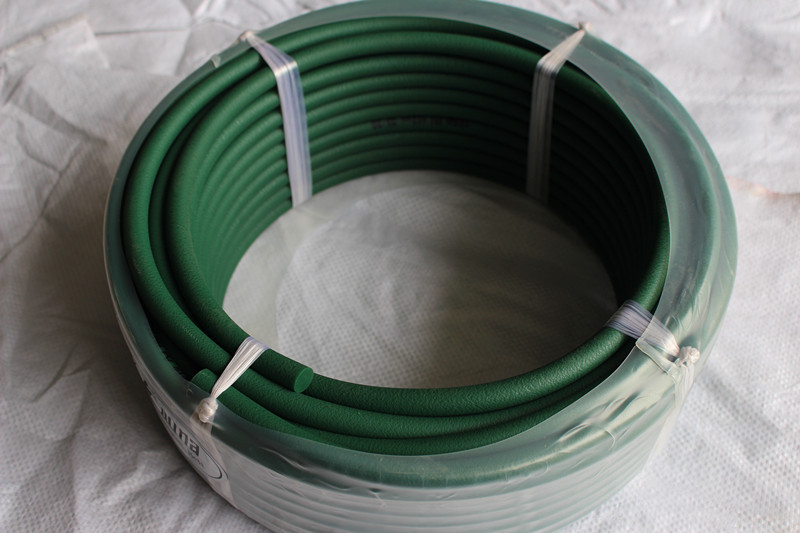

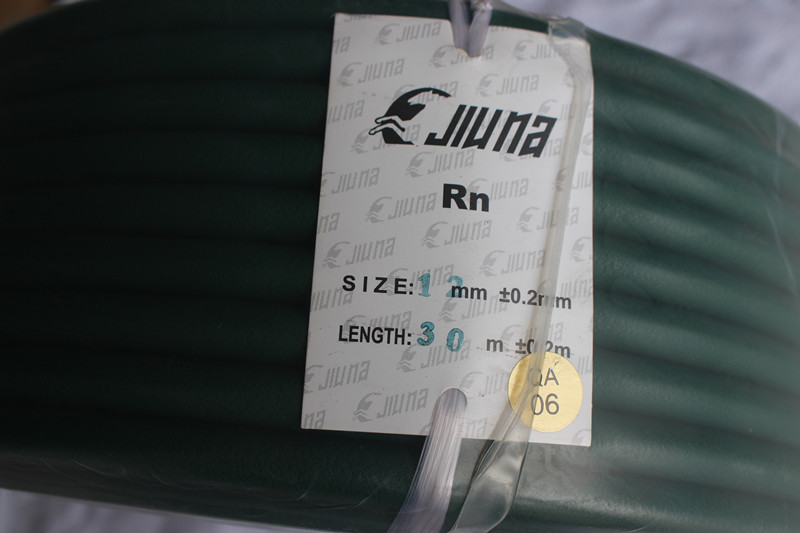

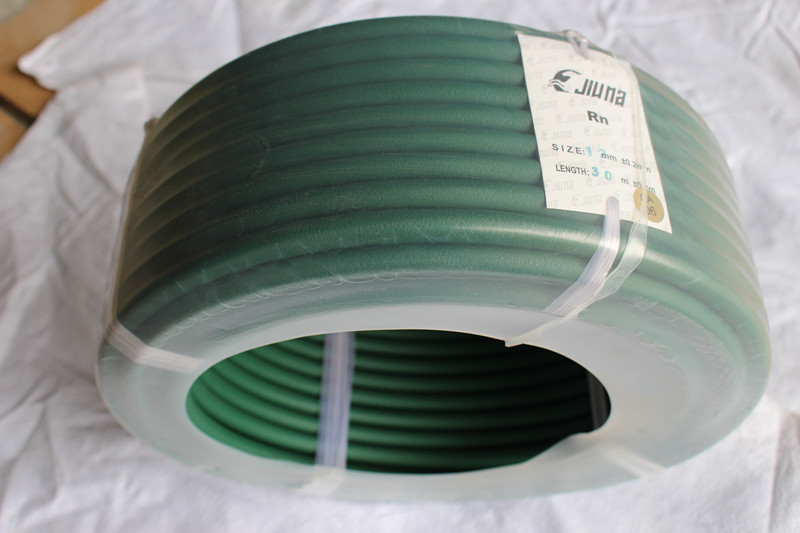

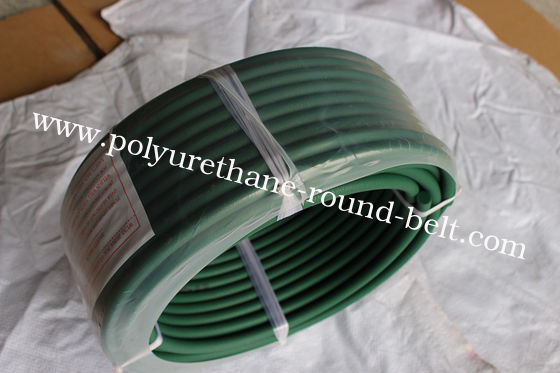

85A Hardness Polyurethane Round Belt High Impact Resistance

85A Hardness Polyurethane Round Belt High Impact Resistance
85A Hardness Polyurethane Round Belt High Impact Resistance 85A Hardness Polyurethane Round Belt High Impact Resistance 85A Hardness Polyurethane Round Belt High Impact Resistance 85A Hardness Polyurethane Round Belt High Impact Resistance

बड़ी छवि :  85A Hardness Polyurethane Round Belt High Impact Resistance

उत्पाद विवरण:
Place of Origin: wuxi city of china
ब्रांड नाम: jiuna
प्रमाणन: ROHS
Model Number: dia 12 mm
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union
Supply Ability: 95.000 meters per Month
विस्तृत उत्पाद विवरण
hardness: 85A Tensile: 45Mpa
material: PU color: green
length: 30m/roll Type: PU roungh round belt
हाई लाइट:

pu round belt

,

पु extruded बेल्ट

85A Hardness Polyurethane Round Belt High Impact Resistance

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.


supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


85A Hardness Polyurethane Round Belt High Impact Resistance 085A Hardness Polyurethane Round Belt High Impact Resistance 1


85A Hardness Polyurethane Round Belt High Impact Resistance 2
