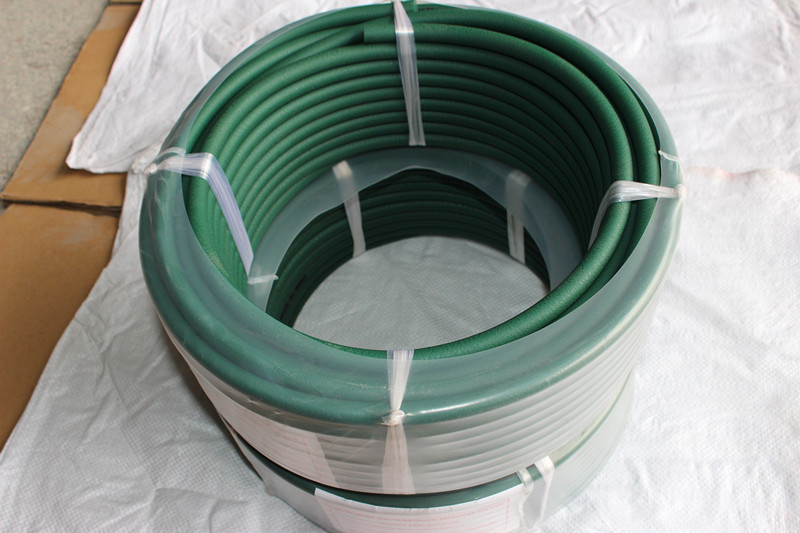

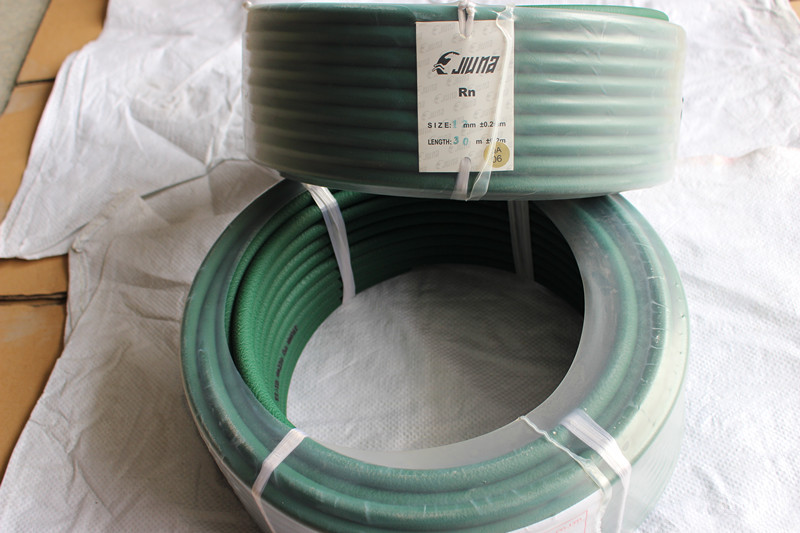

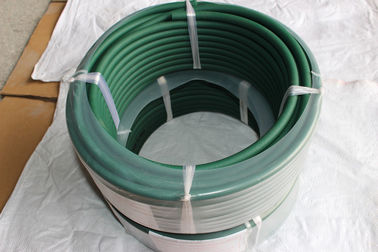

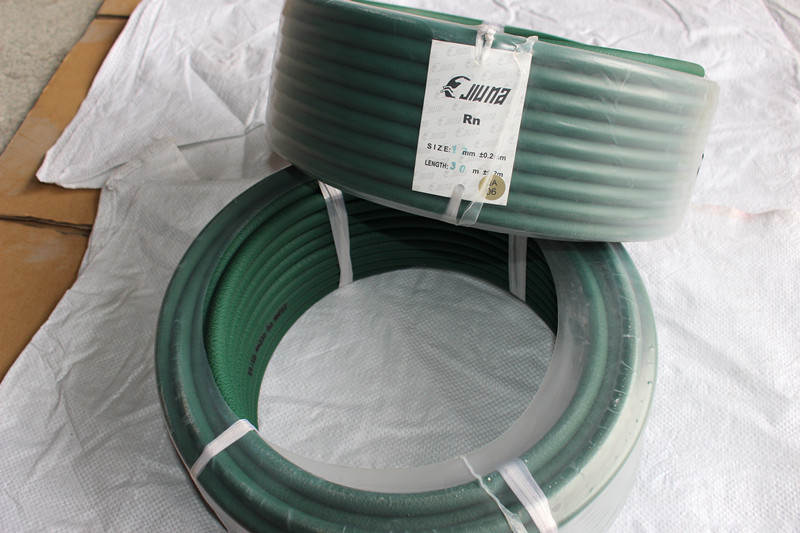

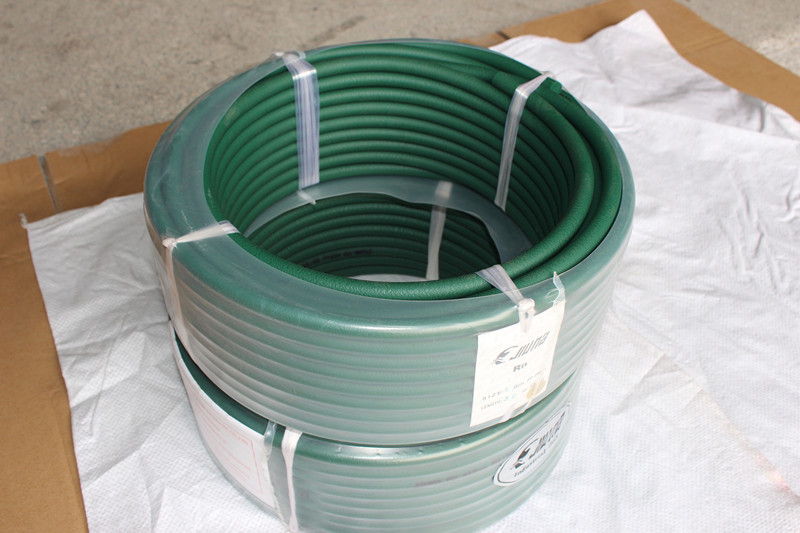

12mm Hardness 85A Polyurethane Round Belt Strict with quality

12mm Hardness 85A Polyurethane Round Belt Strict with quality
12mm Hardness 85A Polyurethane Round Belt Strict with quality 12mm Hardness 85A Polyurethane Round Belt Strict with quality 12mm Hardness 85A Polyurethane Round Belt Strict with quality 12mm Hardness 85A Polyurethane Round Belt Strict with quality

बड़ी छवि :  12mm Hardness 85A Polyurethane Round Belt Strict with quality

उत्पाद विवरण:
Place of Origin: china
ब्रांड नाम: JIUNA
प्रमाणन: ROHS
Model Number: Dia12 mm
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 96.000 meters per Month
विस्तृत उत्पाद विवरण
material: pu hardness: 85A
color: Dark green export port: shanghai
longth: 30m /roll radius of gyration: 20mm-160mm
हाई लाइट:

pu round belt

,

हरे दौर बेल्ट

  We offer a complete line of Polyester and Polyurethane Round belts for use in transmission industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile,
 package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble,
 they are welcome in the polishing& glazing .
5) Round belt:
 a:  diameter: 2mm--30mm
b:  surface: vivid color with glossy surface; neat granule spread fairly for rough surface type.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


12mm Hardness 85A Polyurethane Round Belt Strict with quality 0
