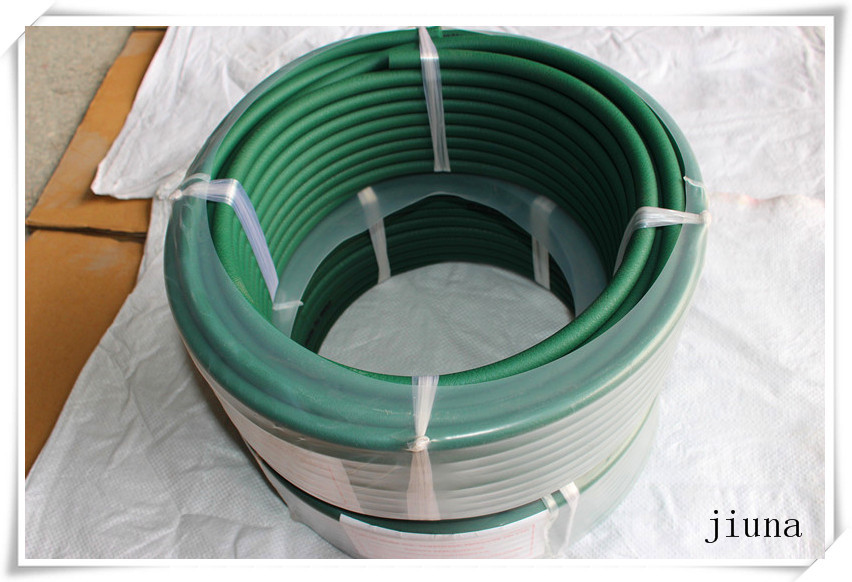

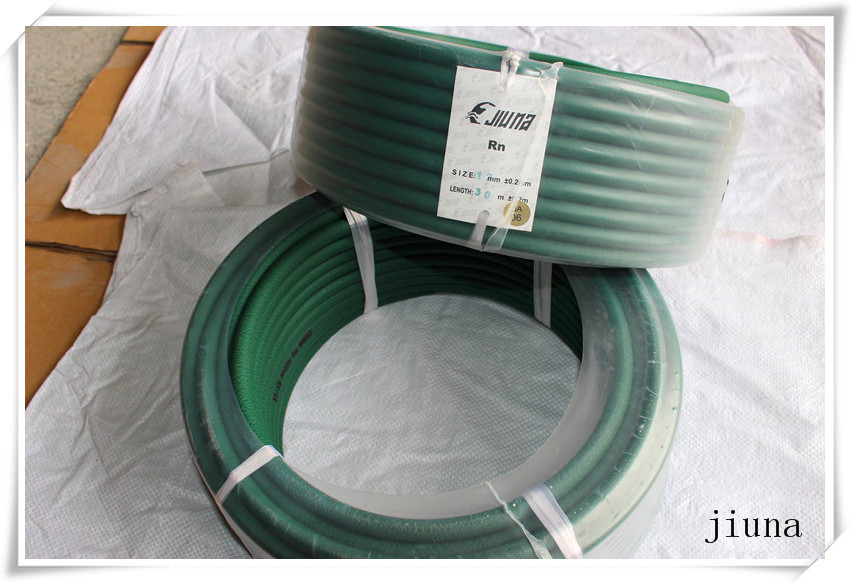

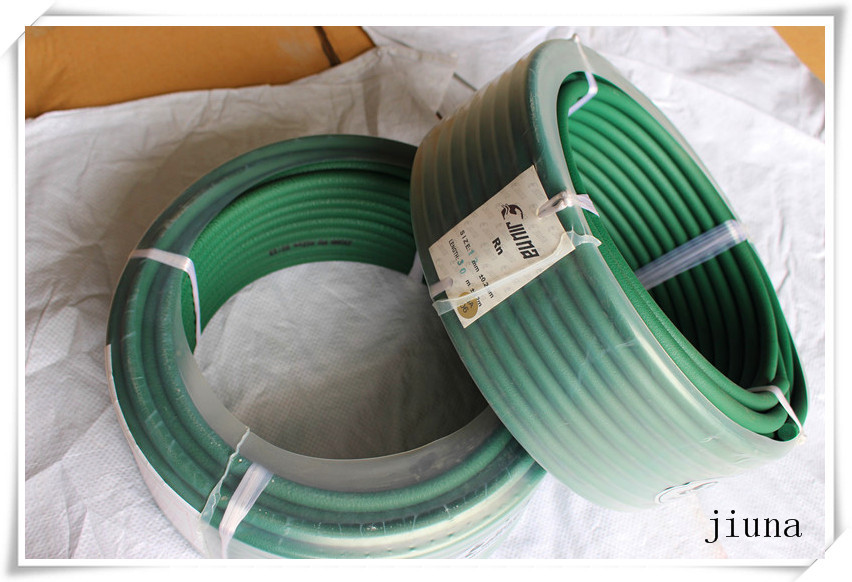

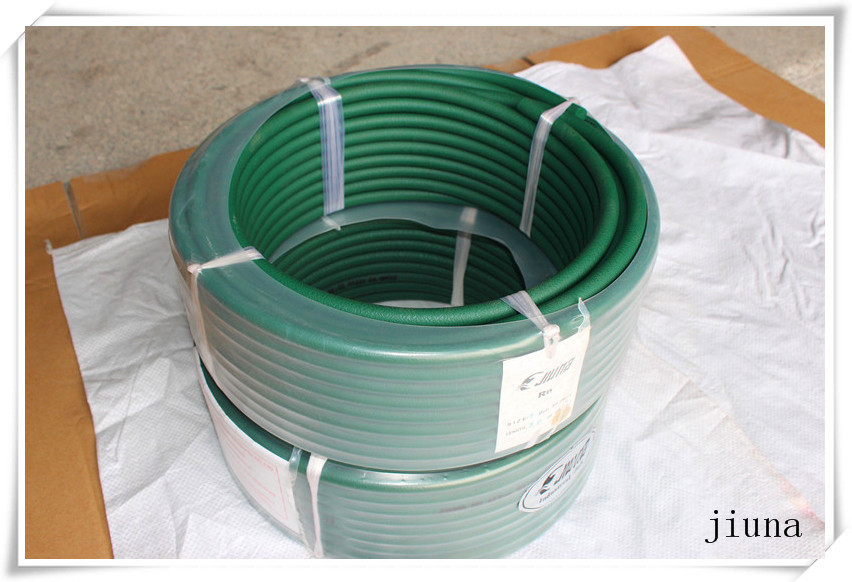

Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected

चीन Wuxi Jiunai Polyurethane Products Co., Ltd प्रमाणपत्र
चीन Wuxi Jiunai Polyurethane Products Co., Ltd प्रमाणपत्र
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

मैं अब ऑनलाइन चैट कर रहा हूँ

Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected

Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected
Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected

बड़ी छवि :  Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected

उत्पाद विवरण:
Place of Origin: china
ब्रांड नाम: jiuna
प्रमाणन: ROHS
Model Number: Diameter 2mm-20mm
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
विस्तृत उत्पाद विवरण
hardness: 85A color: green
stretching rate: 1.5-3% Surface: rough
material: PU length: 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll
हाई लाइट:

pu round belt

,

पु extruded बेल्ट

Smooth Green Pu Round Belt For Rough Transmission Machine , Easily Connected
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed
and other characteristics. Widely used in textile, packaging, printing,
machinery, electronic, glass, chemicals, ceramics and other industries,
especially in the ceramic industry, widely used in the facilities line the glaze,
 polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness.
 They are used widely.
PU Round belt with reinforcement



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30


Service commitment:
“ Quality for keeping going ,Credit to win the world”
